A convenient way to store your pressure washer hose. Reel capacities based on R1 Mi-T-M hoses.

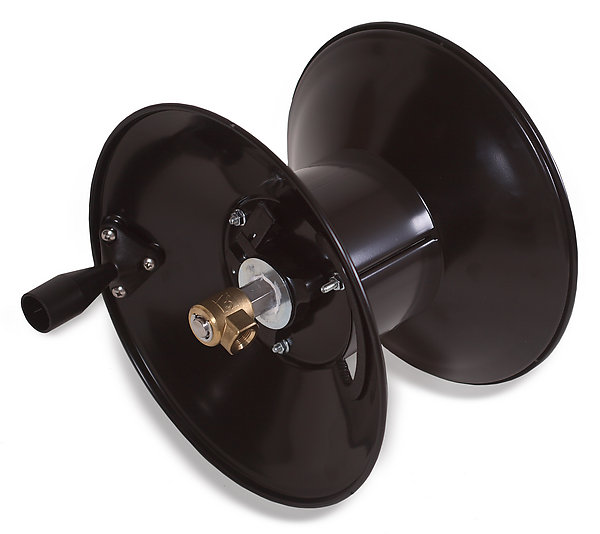

50-0164 pictured
·13-inch diameter
·100-foot maximum hose length
·4000-PSI and lower
50-0165
·16-inch diameter
·200-foot maximum hose length
·4000-PSI and lower
50-0195
·13-inch diameter
·150-foot maximum hose length
·360° pivoting action
·4000-PSI and lower
50-0196
·16-inch diameter
·200-foot maximum hose length
·360° pivoting action
·4000-PSI and lower
Features:
·Frame mount
·Easy-mount bracket design
·Clean hands hose guide
·Live system
50-0164 and 50-0165 must be mounted with 13-0208A18, 45° bracket or 13-0210A18, 90° bracket.
Note: Consult factory for correct mounting brackets and jumper hoses.
Additional Items:
Brackets
AW-0050-0138
·Universal mount
·Fits Hot Water Gasoline Direct Drive DHS Series 2500-PSI models, HVS Series and Hot Water Electric Direct Drive DHS Series
13-0175A18
·Cold water base mount
·Fits Cold Water Premium Series 2500 to 4000-PSI gasoline models
13-0179A18
·For hose reels on single and dual-axle trailers
13-0207A18
·Wall-mount
·Fits HEG Series
13-0208A18
·45°
·Mounts hose reel without swivel over unit
13-0210A18
·90°
·Mounts hose reel without swivel to side of unit
13-0251A18

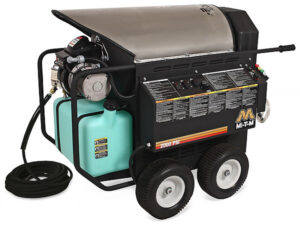

·Fits HHS Series
AW-0050-0140
·29-inch bar
·Fits Cold Water Premium Series with Roll Cage
AW-0050-0186
·Fits HHB and HHS Series
Elbow
24-0105
·Required for 50-0164 and 50-0165 hose reels and jumper hose mounting
Jumper Hoses
15-0159
·40-inch
·For hose reels on single and dual axle trailers
850-0278
·85-inch
·Quick connect
·Fits Hot Water Electric Belt Drive DHS Series and HHB, HHS, HEG, HDC and HVS Series
850-0443
·42-inch
·Quick connect
·Fits DHG Series
852-0139
·57-inch
·Quick connect
·Fits Hot Water Gasoline Direct Drive DHS Series, Hot Water Electric Belt Drive DHS Series and Cold Water Pressure Washers
850-0278 and 852-0139 jumper hoses are not rated for steam applications.
