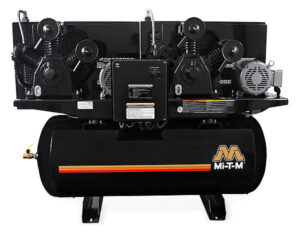

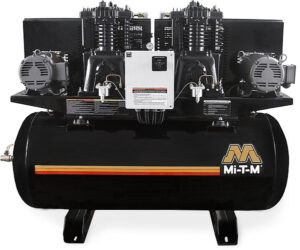

The M Series air compressors are available in many motor configurations and offer maximum air power day-in and day-out.
Compressor Pump:
·Cast iron compressor pump
·Splash lubricated
·Stainless-steel braided discharge hose
·Large canister intake filter
·Oil level sight indicator
Motor:
·Industrial low RPM motor
·Magnetic start for thermal overload protection
Frame:
·Powder coated ASME receiver tank
·3/16-inch base plate to reduce vibration
·Powder coated two-piece belt guard
Components:
·ASME safety valves
·Tank pressure gauge
·Hour meter
·Large fly wheel
·Intake filter/silencer
·Tank shut-off valve
·3 position switch – compressor 1 (lead motor pump), automatic alternating and compressor 2 (lead motor pump)
Limited Warranties:
·1 year electric motor
·2 year pump exchange
Certification:
·ASME Boiler and Pressure Vessel Code – U
Models Available:
ADD-23110-120HM-Horsepower/Motor – 10.0 HP, 230V, 1Ø, 78.0A; Net/Ship Wt. – 1283/1433 lb.
ADD-20310-120HM-Horsepower/Motor – 10.0 HP, 200V, 3Ø, 61.6A; Net/Ship Wt. – 1243/1393 lb.
ADD-23310-120HM-Horsepower/Motor – 10.0 HP, 230V, 3Ø, 53.6A; Net/Ship Wt. – 1223/1373 lb.
ADD-46310-120HM-Horsepower/Motor – 10.0 HP, 460V, 3Ø, 26.8A; Net/Ship Wt. – 1223/1373 lb.
